Intel® Core™ i7 7500U mini PC, 6xUSB ports, 3 display ports to connect LCD
Applications
Industrial automation
Transaction Kiosks
Digital Signage
telecomommunication
Payment device
Factory automation
Entertainment video
Entry/exit terminal
Machine control
CNC cutting machine
Automatic Self-Service Vending Machines
Multi media education
Features & Benefits:
1. Tiny and Delicate Design:
With small and exquisite design, easy to put and remove, save space; integrated design, low noise; you can also hang it on the back of the displayer, saving the desktop space maximally.
2. Cost-effective: Save up to 70% on the total cost of ownership versus buying a traditional desktop PC, embedded low power consumption CPU can cut down the electricity costs.
3. Dual Application: Can be used as an independent computer, also can be used as a thin client with RDP sharing another host PC.
Product Show
Description
Computing System
Processor: Intel® Core™ i7 7500U (dual core, max 3.5GHz)
Chipset: Intel® Kabylake-U
Memory: 1 x DDR4-2666/2400MHz SO-DIMM Slot, max.16GB
Graphics
Graphics Engine: Intel® HD Graphics 620 (Integrated)
Video Output: HDMI 1.4 (4k@30Hz), DP (4k@60Hz)
Storage
Hard Drive: 1 x 2.5-inch SATA 6.0 Gbps SSD/HDD slot
M.2 : m.2 2280 SATA SSD/NVME SSD

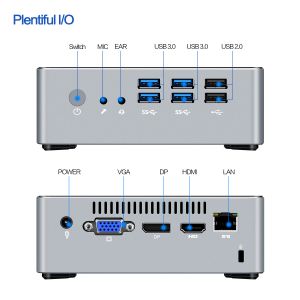

I/O Ports
Audio: Stereo output
Loss-less Bitstream via HDMI /DP/VGA
Microphone in
USB Port: 4 x USB 3.0
2 x USB 2.0
LAN: 1 x 10/100/1000Mbps
Antenna: Internal, dual antenna
Wifi: m.2 PCIe slot
Bluetooth: support
Mechanical
Kensington Lock: Yes
LED Indicators: Power, Power Supply
AC Adaptor : DC12V4A
Cooling system: Fan cooling
Dimensions: 140mm x 140mm x 46mm
Case Mounting: VESA Mount
Miscellaneous
Supported OS: Windows 10 Home/Pro, Ubantu
Accessories: 1 x AC adapter
1 x User manual
1 x VESA Mount (with 4 screws)
